I Do Not Add a Second Chart Stack Mid-Sprint

The chart PR is green. The screenshot on the happy path looks fine. Then someone adds a second chart library “just for one widget.”

That is not a visualization improvement. That is two tooltips, two dark-mode contracts, two SSR hydrate paths, and two rollback stories living in the same admin shell. I refuse that merge until two names exist on the ticket: the person who owns revert, and the fixture that fails when the chart lies.

This week’s ApexCharts default-bundle shrink is evidence that the stack you already have still moves. It is not a reason to install Apache ECharts beside it before Friday.

The question is not whether the extra widget demos well. The question is whether it survives maintenance, handoff, and the three dashboard screens your operators open every Monday.

The second library is the incident

Laravel + Vue SaaS culture still treats charts as decoration. Backend migrations get owners. Chart PRs get “looks fine in Storybook.” That split is false the moment two renderers share a route.

A second stack does not arrive as architecture. It arrives as a sentence:

Apex cannot do this small-multiples panel. I will drop in ECharts for this one card.

The card ships. The next card copies the import. Six weeks later the operations dashboard has Apex for KPI sparklines and ECharts for the “special” grid, and nobody remembers which package owns tooltip delay, export PNG, or the Inertia visit that destroys the canvas.

I have watched this on admin work that looks nothing like a charting conference talk. Support opens the same sales mix screen every morning. Finance exports the same PNG into a WhatsApp thread. The “one widget” becomes the screen the business actually uses.

This is the same change-control instinct as a UI kit lockfile bump: generated surface area is a release, not cosmetics. Charts are worse, because users learn pixel behavior. Once a hover target moves, the product changed.

What this week actually changed (once, as evidence)

On 25 August 2026, ApexCharts published 7.0.0. npm dist-tags.latest and dist-tags.next both point at 7.0.0 (2026-08-25T08:13:16Z). The official story is a subtraction, not a feature parade. [Source: https://github.com/apexcharts/apexcharts.js/releases/tag/v7.0.0] [Source: https://www.npmjs.com/package/apexcharts]

The v7.0.0 body and the migration guide agree on the headline:

The nine opt-in features, as named by the migration table: Trellis, Storyboard, Perspectives, Ink, Canvas renderer (Strata), Linked views, Measure ruler, Rewind, Context menu. Chart types, axes, tooltips, legend, toolbar, exports, annotations, keyboard navigation, morph, drilldown, themes, plugins (Weave), custom series (Marks), and design tokens (Facet) stay in the default bundle. [Source: https://apexcharts.com/docs/migration-v7/]

Source ApexCharts v7 migration guide

Source ApexCharts v7.0.0 GitHub release

Trellis is new and Premium. Canvas is now an explicit import; a chart that still asks for renderer: 'canvas' draws SVG and tells you in the console. That is the behavior I want in a dashboard: degrade loudly, do not invent a second library because one import line was missing.

I already wrote the sibling decisions for this stack: ApexCharts 6.4 as a dashboard contract (heatmap geometry and the Canvas import), and unit/waffle as a product decision (premium type, watermark, rollback to a free chart). Today’s refusal sits on top of those posts. Do not reread them as permission to dual-run ECharts.

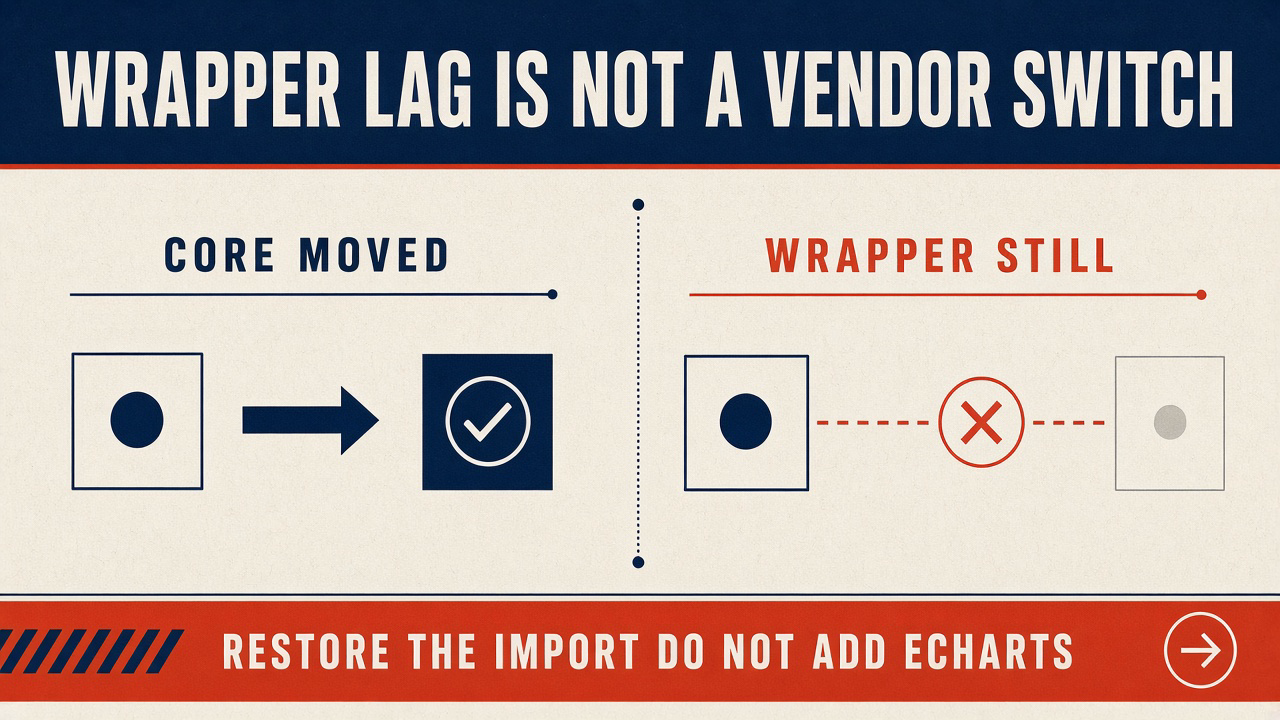

Wrapper lag is not a second-library permit

vue3-apexcharts latest is still 1.11.1, published 2026-03-03T19:29:31Z. Peer range: apexcharts >= 5.10.0, vue >= 3.0.0. [Source: https://registry.npmjs.org/vue3-apexcharts] [Source: https://www.npmjs.com/package/vue3-apexcharts]

That peer range accepts 7.x. The official migration guide says the Vue 3 wrapper already accepts 7.x and does not need a new wrapper version for the core upgrade. GitHub package.json on main matches: "apexcharts": ">=5.10.0". [Source: https://github.com/apexcharts/vue3-apexcharts/blob/main/package.json]

So this week’s failure mode is not “the Vue package is stuck, switch vendors.” The failure mode is:

1. Core moves to 7.0.0 through npm update.
2. CI stays green because types still parse and Vite still bundles.
3. A trellis or canvas config silently falls back (single chart / SVG).
4. Someone “fixes” the missing panel by adding ECharts.

Step 4 is the merge I reject.

If you need a second engine, you need a product reason that survives a rollback meeting: licensing, a chart type the current stack cannot express even with an explicit feature import, or a proven performance ceiling on the screens you actually ship. “The wrapper did not bump” is not that reason.

Apache ECharts latest is 6.1.0. vue-echarts latest is 8.1.0 (2026-08-07T09:38:06Z), peer echarts ^6.0.0. Those numbers are inventory, not a recommendation. [Source: https://www.npmjs.com/package/echarts] [Source: https://www.npmjs.com/package/vue-echarts]

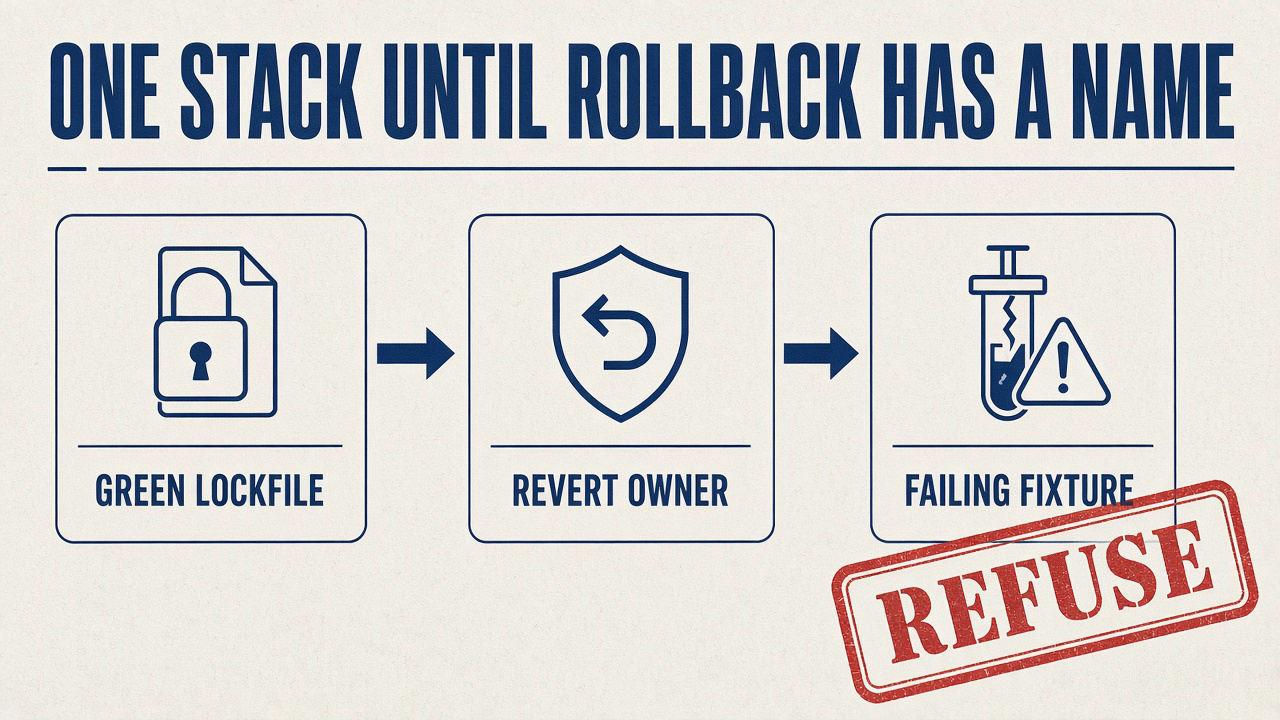

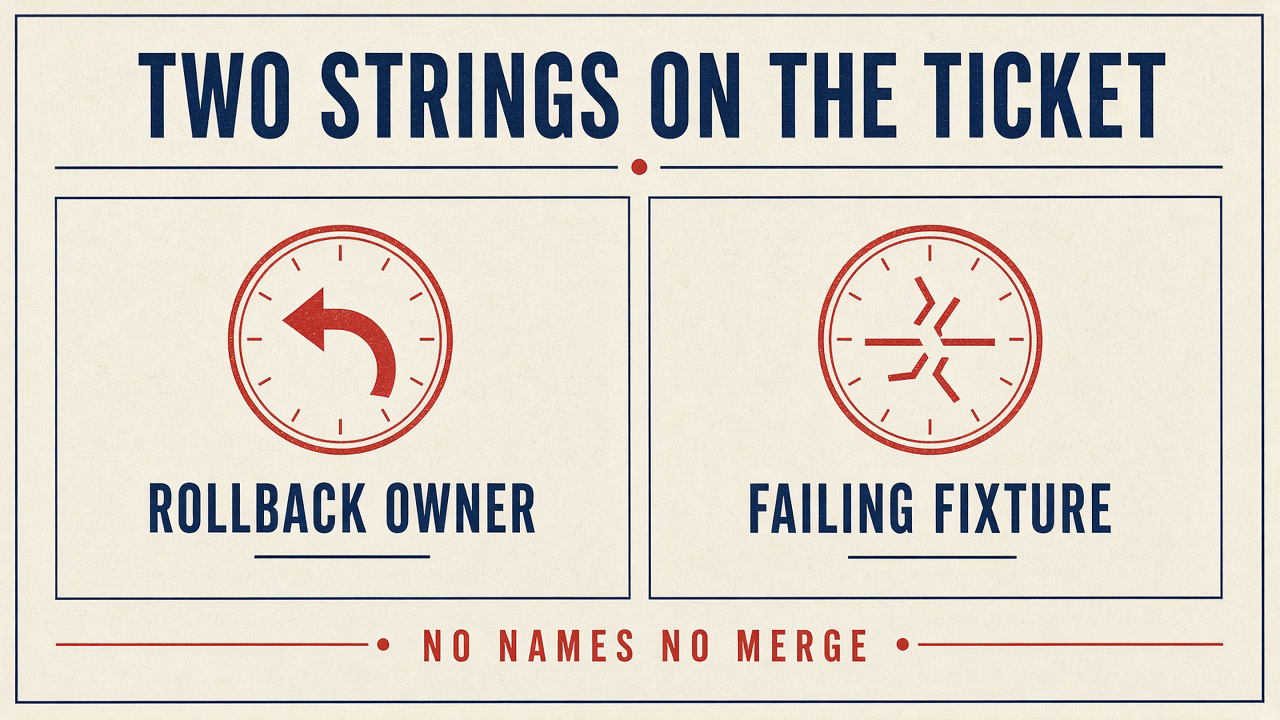

Two names before merge

I will not argue chart aesthetics in review. I will ask for two strings.

Rollback owner. A person, not a team alias. They revert the lockfile and the feature import in one PR if staging lies. If they are on leave, the ticket waits.

One failing fixture. A test that is red when the chart is wrong. Green unit tests on option JSON are not a fixture. The fixture has to see pixels or a documented fallback.

That pair is enough. Without it, the PR is a demo.

Here is the merge desk I actually paste into a PR template.

1## Chart change
2- [ ] Stack stays ApexCharts + vue3-apexcharts (no new chart package)
3- [ ] Rollback owner: @username
4- [ ] Fixture path: tests/e2e/dashboard-revenue-chart.spec.ts
5- [ ] Explicit feature imports listed (or "none — default bundle only")
6- [ ] Screenshot of the failing state attached (fallback / missing series / wrong renderer)
7- [ ] Kill date if this is a time-boxed evaluation: YYYY-MM-DD

If the author cannot fill the owner and the fixture path, the chart does not ship. I do not negotiate that on Friday afternoon.

Prove the pin, then prove the lie

Do not trust package.json ranges in a Vite app. Prove what the lockfile resolved, and prove the chart still tells the truth after that resolve.

 1import { readFileSync } from 'node:fs'
 2import { createRequire } from 'node:module'
 3import assert from 'node:assert/strict'
 4
 5const require = createRequire(import.meta.url)
 6const lock = JSON.parse(readFileSync('package-lock.json', 'utf8'))
 7
 8function resolved(name) {
 9  const key = `node_modules/${name}`
10  const pkg = lock.packages?.[key]
11  assert.ok(pkg, `${name} missing from lockfile`)
12  return pkg.version
13}
14
15const apex = resolved('apexcharts')
16const vueApex = resolved('vue3-apexcharts')
17
18assert.match(apex, /^7\./, `apexcharts pin drifted: ${apex}`)
19assert.equal(vueApex, '1.11.1', `vue3-apexcharts unexpected: ${vueApex}`)
20
21const vueMeta = require('vue3-apexcharts/package.json')
22assert.match(
23  vueMeta.peerDependencies.apexcharts,
24  />=5\.10\.0/,
25  'peer range no longer accepts the core pin you think you shipped',
26)
27
28console.log(`ok apexcharts@${apex} vue3-apexcharts@${vueApex}`)

Run that in CI before Vite. It does not prove pixels. It proves you are not arguing about two different trees.

Then restore optional features in the same module that mounts the chart, not in a random main.ts someone will delete during an Inertia cleanup.

 1<script setup lang="ts">
 2import { onMounted, onBeforeUnmount, ref } from 'vue'
 3import ApexCharts from 'apexcharts'
 4import 'apexcharts/features/trellis'
 5import 'apexcharts/features/renderer-canvas'
 6
 7const el = ref<HTMLDivElement | null>(null)
 8let chart: ApexCharts | undefined
 9
10onMounted(() => {
11  if (!el.value) {
12    throw new Error('chart mount node missing')
13  }
14  chart = new ApexCharts(el.value, {
15    chart: { type: 'line', renderer: 'canvas', height: 320 },
16    series: [
17      { name: 'Revenue', region: 'North', data: [12, 18, 15, 22] },
18      { name: 'Revenue', region: 'South', data: [9, 11, 14, 13] },
19    ],
20    xaxis: { categories: ['W1', 'W2', 'W3', 'W4'] },
21    trellis: { by: 'region', minPanelWidth: 260 },
22  })
23  chart.render()
24})
25
26onBeforeUnmount(() => {
27  chart?.destroy()
28  chart = undefined
29})
30</script>
31
32<template>
33  <div ref="el" data-testid="revenue-trellis" />
34</template>

If Trellis is Premium in your environment, this module is already a license decision. Do not hide that inside a “UI tweak” PR. The unit/waffle contract already covers watermarked types. Same rule: commercial path first, aesthetics second.

The fixture that earns the merge is the one that fails when the feature import is missing.

 1import { test, expect } from '@playwright/test'
 2
 3test('revenue trellis refuses a silent single-chart fallback', async ({ page }) => {
 4  const warnings: string[] = []
 5  page.on('console', (msg) => {
 6    if (msg.type() === 'warning' || msg.type() === 'error') {
 7      warnings.push(msg.text())
 8    }
 9  })
10
11  await page.goto('/admin/revenue')
12  const root = page.getByTestId('revenue-trellis')
13  await expect(root).toBeVisible()
14  await expect(root).not.toBeEmpty()
15
16  const fallback = warnings.find((w) =>
17    w.includes('requires the trellis feature') && w.includes('Rendering as a single chart'),
18  )
19  expect(
20    fallback,
21    'official fallback warning means the feature import never loaded',
22  ).toBeUndefined()
23})

That test is supposed to go red if someone removes the feature import or if a lockfile bump drops Trellis from the default bundle and nobody restored it. A red test is cheaper than a second vendor.

The tax of “just add ECharts”

A second stack is not npm install echarts vue-echarts. It is a permanent fork of every dashboard rule you already paid for.

Coding agents make this worse. They do not share your allow-list. They share GitHub snippets. If both libraries exist in package.json, the next agent-authored widget will pick whichever sample ranked. That is how a “pilot card” becomes the default.

I treat visualization the same way I treat agent operations: the process is not the product. The product is a named side effect plus a proof artifact. A new chart package without a fixture is an unowned side effect.

If ECharts is the right long-term engine, schedule a migration. Freeze new Apex charts. Name the cut date. Do not run both as a lifestyle.

A dashboard allow-list you can enforce in CI

Keep the allow-list in repo, not in Slack.

1{
2  "chartStack": {
3    "engine": "apexcharts",
4    "wrapper": "vue3-apexcharts",
5    "forbidden": ["echarts", "vue-echarts", "chart.js", "highcharts"]
6  }
7}

 1import { readFileSync } from 'node:fs'
 2import assert from 'node:assert/strict'
 3
 4const pkg = JSON.parse(readFileSync('package.json', 'utf8'))
 5const policy = JSON.parse(readFileSync('policy/chart-stack.json', 'utf8'))
 6const deps = { ...pkg.dependencies, ...pkg.devDependencies }
 7
 8for (const name of policy.chartStack.forbidden) {
 9  assert.equal(
10    deps[name],
11    undefined,
12    `${name} is a second chart stack; remove it or open a migration ticket with a kill date`,
13  )
14}
15
16assert.ok(deps[policy.chartStack.engine], 'engine missing')
17assert.ok(deps[policy.chartStack.wrapper], 'wrapper missing')

This is dumb on purpose. Dumb gates survive handoff. Clever exceptions die when the original author changes jobs.

Put the same forbidden list in your coding-agent instructions. A local CI check that agents cannot see is a lecture, not a control.

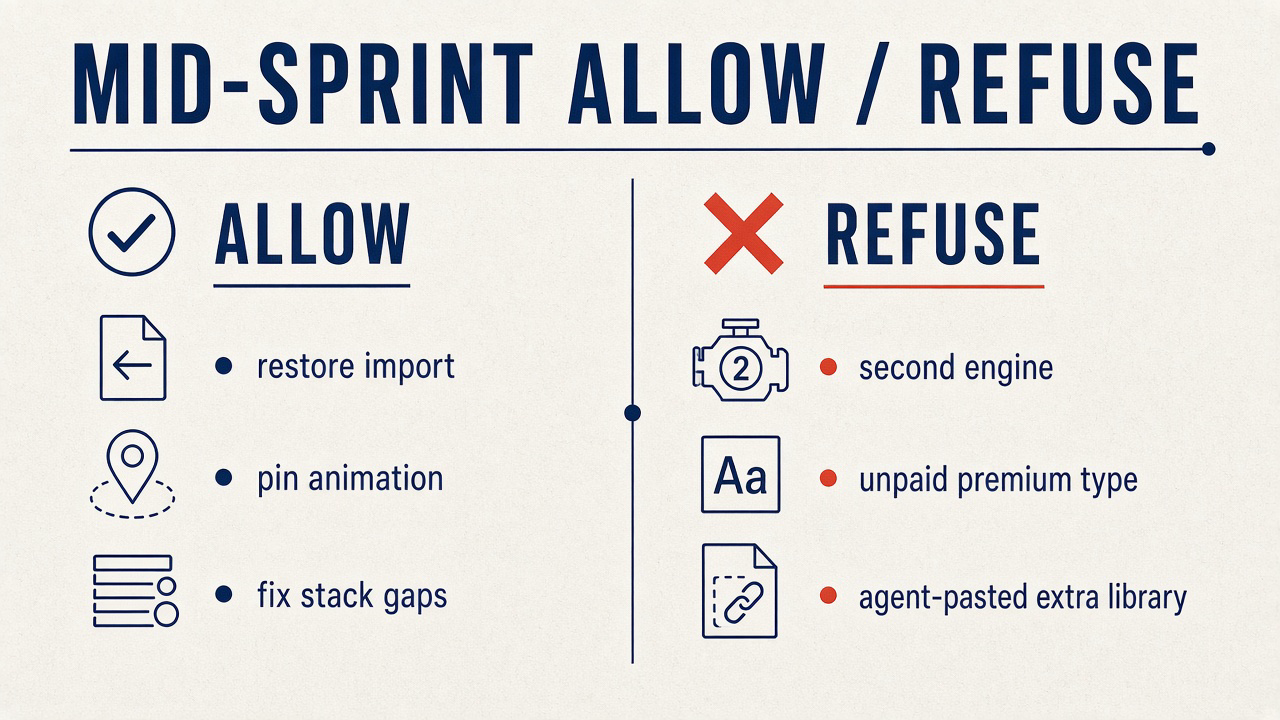

What a mid-sprint chart change is allowed to be

Allowed, with owner + fixture:

• Restore a v7 feature import that a lockfile bump dropped.
• Pin dataLabels.animate.enabled when bar labels now ride the update clock and your screenshot diff is noise.
• Remove borderRadiusWhenStacked from leftover config.
• Fix a ragged stacked series after the x-alignment repair.
• Swap type: 'pie' to type: 'donut' on an existing Apex instance.

Not allowed mid-sprint:

• Add echarts because Trellis looked empty (import the feature, or drop the panel).
• Add a premium type to a customer-facing screen without license review.
• Let a coding agent introduce vue-echarts in a “quick dashboard polish” PR.
• Keep both engines “until we decide.” Decision is the ticket. Dual running is the absence of one.

The start here hub on this site is the same idea at a higher level: pick the boring path you can maintain. Chart libraries are not where you collect souvenirs.

What you should do Monday morning

1. Inventory one product surface. List every chart on the admin home and the finance export screen. One engine or you already have an incident.
2. Read the lockfile, not Twitter. Confirm apexcharts and vue3-apexcharts resolved versions. If core is on 7.x, grep for the nine feature names and for borderRadiusWhenStacked.
3. Name the rollback owner in the next chart PR template before anyone types npm install.
4. Add one failing fixture for the chart finance actually screenshots. Include a missing data point.
5. Commit a forbidden-package assert for echarts / vue-echarts unless a dated migration ticket exists.
6. Tell coding agents the allow-list. If the agent cannot see the policy, it will paste the other library.
7. If you truly need ECharts, open a migration with a freeze on new Apex charts and a kill date. Do not “just add it for one widget.”

Further reading

Source Migrating to ApexCharts v7

Source ApexCharts 7.0.0 release notes

Source vue3-apexcharts on npm

Related on this site: ApexCharts 6.6 unit/waffle contract, UI kit bump as change control, and the Laravel + Vue SaaS hub.
